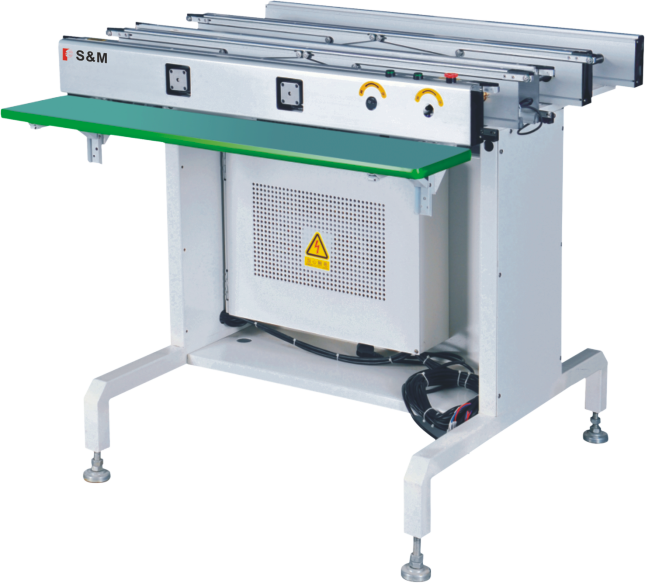

Belt Link Conveyor PTS-460
Smooth belt surface for gentle transport of flexible, thin, or delicate PCBs. Ideal for post-reflow handling of warm boards and temperature-sensitive assemblies.
| Model | PTS-460 |
| Transport Method | Belt (smooth surface) |
| Max PCB Width | 460 mm |
| Conveyor Height | 900 ± 20 mm (SMEMA) |
| Interface | SMEMA compatible |
Full Specifications
| Model | PTS-460 |
| Transport Method | Belt (smooth surface) |
| Max PCB Width | 460 mm |
| Conveyor Height | 900 ± 20 mm (SMEMA standard) |
| Interface | SMEMA compatible |
| Power Supply | 220V / 50Hz |
Who Should Choose the Belt Link Conveyor?
Flexible & Thin PCBs
Flexible printed circuits (FPC) and ultra-thin boards can warp or jam in rail-based conveyors. The smooth belt surface provides full-board support without edge stress.
Post-Reflow Transport
Boards exiting a reflow oven are still warm and may have soft solder joints. Gentle belt transport prevents board deflection and protects fragile solder joints during cooling.
High-Component-Density Boards
Boards with tall components that overhang rails, or sensitive optical or RF components requiring vibration-free transport, benefit from smooth belt handling.
Belt vs Single-Track Rail
Rail conveyors use edge-gripping rail guides and are faster. Belt conveyors are gentler and provide centre support. Choose belt when board fragility is a priority.
