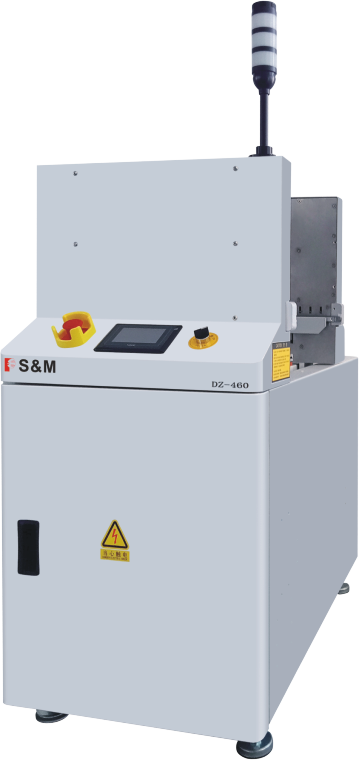

Auto-Top PCB Unloader (DZ Series) for Compact, High-Capacity Collection
Top-loading magazine collection with automatic upward stacking. The DZ Series reduces footprint and improves ergonomics while keeping end-of-line board handling stable for standard SMT lines.
| Collection Method | Top-loading, upward stacking |
| PCB Size Range | 50 × 50 – 460 × 460 mm |
| Magazine Capacity | Up to 60 boards |
| Best For | Space-constrained line ends |
| Interface | SMEMA compatible |
Technical Specifications
| Series | DZ Series |
| Collection Method | Top-loading, upward stacking |
| PCB Width Range | 50 – 460 mm |
| PCB Length Range | 50 – 460 mm |
| Magazine Capacity | Up to 60 boards per magazine |
| Interface Standard | SMEMA |
| Power Supply | 220V / 50Hz |
| Air Supply | 0.5 MPa |
Optional Configuration
| Rail Width Adjustment | Manual adjustment or motorized width adjustment |
| Magazine Handling | Magazine presence sensing, full-magazine detection, and board-count options |
| Signal / Control | Tower light, buzzer alarm, and custom handshake integration on request |
| Line Direction | Left-to-right or right-to-left to match plant layout |
Who This Unloader Fits Best
Limited Floor Space
Top-loading magazine handling keeps the footprint compact when the end of the line is close to walls or aisles.
Ergonomic Operation
Magazine access from the top reduces bending and improves swap efficiency during long production shifts.
Higher Capacity per Magazine
Best when you want fewer interventions without moving to a dual-magazine configuration.
Compared with Dual Magazine
Dual magazine maximizes uninterrupted run time; auto-top maximizes capacity in a compact footprint.
