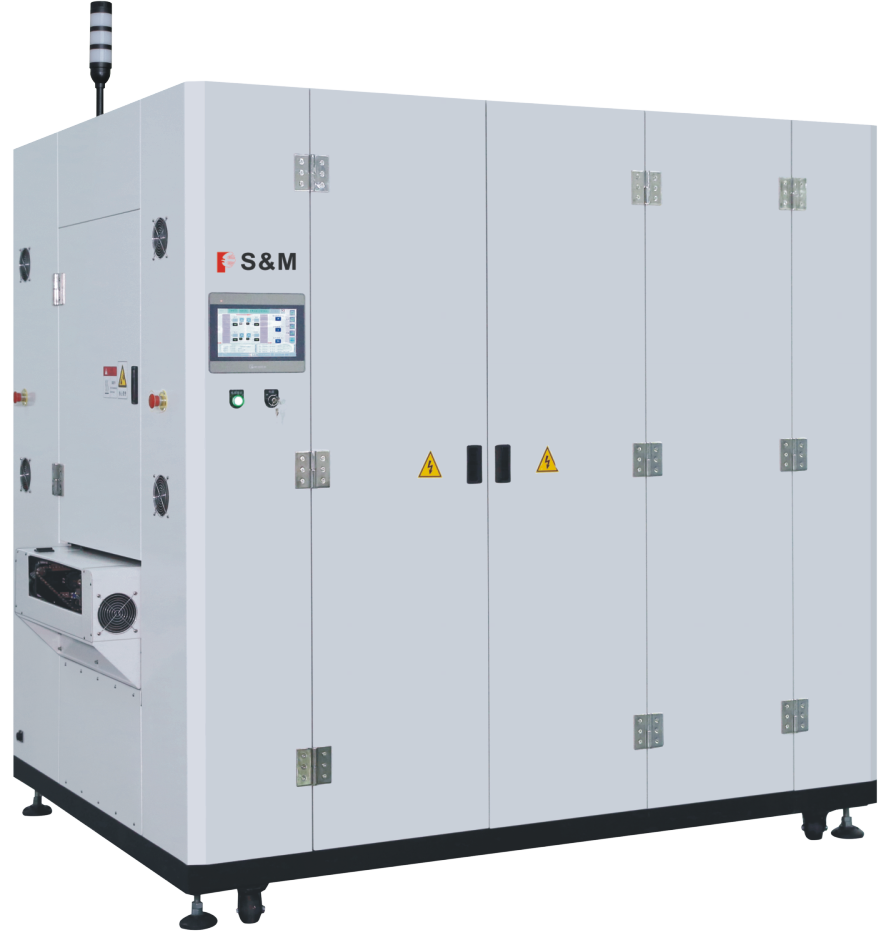

Curing Oven · Model KT-400
KT-400
Chain-type vertical curing oven designed for continuous inline adhesive curing and thermal processing.
| Model | KT-400 |
Technical Specifications
| Production Application Range | Consumer Electronics Dispensing, SMT Curing |
| Overall Dimensions | 2550(L)*2130(W)*2350(H)mm |
| Cleanliness Class | Class 100,000 (ISO Class 7) |
| Temperature Setting Range | Ambient ~200degCadjustable |
| TemperatureControl Accuracy | +/-1degC |
| Number of Zones | 4pcs |
| Heating Method | Large Hot Air Circulation,Two-sided Blow,Top Air Return |
| Control Method | PID Closed-loop + SSR Drive |
| Minimum Cycle Time | Set per Product Requirement |
| PCBMaximum Size | 500(L)*460(W) |
| Rail Width AdjustmentRange | 100-460mm |
| Rail Width Adjustment | Auto Width AdjustmentNarrow |
| Product Flow Direction | Direction: Left→Right(Optional:Right→Left) |
| Layer Spacing | 25.4mm |
| Number of Layers | 40Layer*2 |
| Conveyor Height | 950+/-30mm |
| InstalledPower | 70KW |
Who This Machine Fits Best
Adhesive Curing
Precision thermal + UV for consistent adhesive and coating curing.
Clean Environment
Class 100,000 cleanliness for sensitive component processing.
Inline Integration
Conveyor design enables direct integration into existing production lines.
