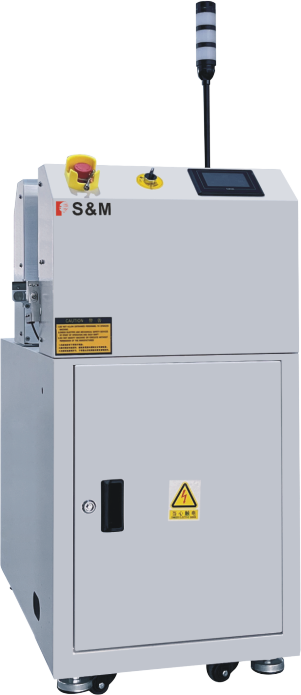

Auto-Drop PCB Loader DL-460
The DL-460 automatically drops boards from magazines into the SMT line without operator intervention. Compact 600mm footprint, handles boards from 50×50 to 500×550mm.
| Model | DL-460 |
| PCB Size | 50×50 – 500×550 mm |
| PCB Thickness | 0.6–2.5 mm |
| Weight | 130 kg |
| Dimensions | L600×W990×H1200 mm |
Technical Specifications
| Model | DL-460 |
| Machine Dimensions | L600 × W990 × H1200 mm |
| Weight | 130 kg |
| PCB Size (Min) | 50 × 50 mm |
| PCB Size (Max) | 500 × 550 mm |
| PCB Thickness | 0.6–2.5 mm |
| Loading Method | Automatic drop from magazine |
| Conveyor Height | 900 ± 20 mm (SMEMA standard) |
| Interface | SMEMA compatible |
| Power Supply | 220V / 50Hz |
Optional Configuration
| Rail Adjustment | Manual width adjustment or motorized width adjustment |
| Signal / Control | Tower light, buzzer alarm, and custom handshake integration on request |
| Magazine Handling | Magazine count detection and magazine-presence sensing |
| Machine Direction | Left-to-right or right-to-left line direction to match plant layout |
Who This Loader Fits Best
24/7 Unmanned Operation
Operator loads magazines; the DL-460 feeds boards automatically. Ideal for lights-out or minimally staffed shifts.
High-Volume Lines
Automatic magazine feeding eliminates manual loading bottlenecks and sustains line throughput.
Compared with Side Entry
Auto-drop automates magazine feeding; side entry prioritizes flexibility for high-mix changeovers.
Compact Footprint
At only 600mm long, the DL-460 fits tight line layouts where standard loaders would not.
