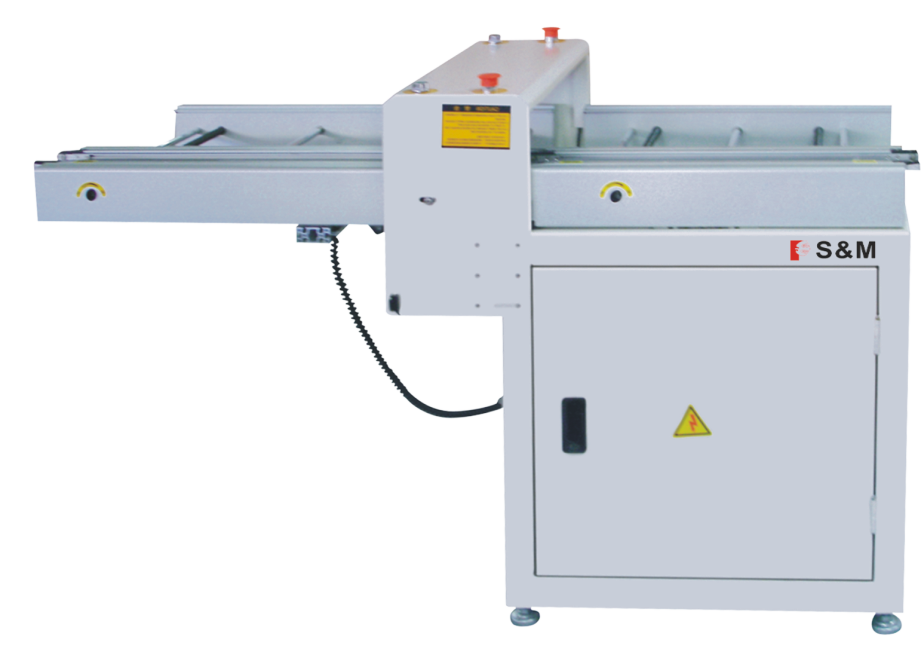

Lift-Gate Conveyor PTE-460
Gate-type conveyor with pneumatic lift mechanism for adjustable rail open/close positions. Enables flexible workspace adaptation with smooth, stable lifting and positioning control.
Pneumatic Lift
Gate Design
SMT Line Ready
Technical Specifications
| Power Supply | 220V AC, Single Phase, Max 300 VA |
|---|---|
| Cycle Time | Approx. 10 seconds |
| Conveyor Speed | 0.5–20 m/min or as specified |
| Transfer Direction | Left→Right / Right→Left (selectable) |
| Width Adjustment | Manual (Optional: Auto width adjustment) |
| PCB Thickness | 0.6–6.0 mm |
| Effective PCB Size (L×W) | 80×50 mm – 510×460 mm (larger sizes available) |
| Machine Dimensions (L×W×H) | L 1,200×W 680×H 1,035 mm (raised); L 725×W 680×H 1,035 mm (lowered) |
| Conveyor Height | 900 ± 20 mm |
| Weight | 150 kg |
Optional Configuration
| Auto Width Adjustment | Motorized auto-adjust width (optional upgrade) |
|---|---|
| SMEMA Interface | Standard |
| MES Integration | One-key width adjustment + MES data exchange (optional) |
| ESD / Safety Options | Available on request |
