Automated loading solutions for SMT production lines. Reliable magazine-to-conveyor and conveyor-to-conveyor PCB transfer.
Sunandmountain PCB Loaders handle the input side of SMT lines — transferring bare boards from magazines into the production flow. Choose from side-entry, inline, vacuum, suction, auto-drop, mini, and heavy-duty configurations. All units support SMEMA-compliant signaling for seamless line integration.
What a PCB Loader Does in Your SMT Line
A PCB loader is the upstream unit that separates individual circuit boards from a stacked magazine and feeds them onto the SMT production conveyor at consistent, repeatable intervals. Without automated loading, operators manually hand-load boards one at a time — creating bottlenecks above 200 boards/hour, introducing placement errors, and limiting the maximum line speed. S&M loaders operate at 300-600 boards per hour, integrate with any SMEMA-compliant conveyor, and handle board widths from 50mm to 510mm.
Browse Models
Select a model to view full specifications

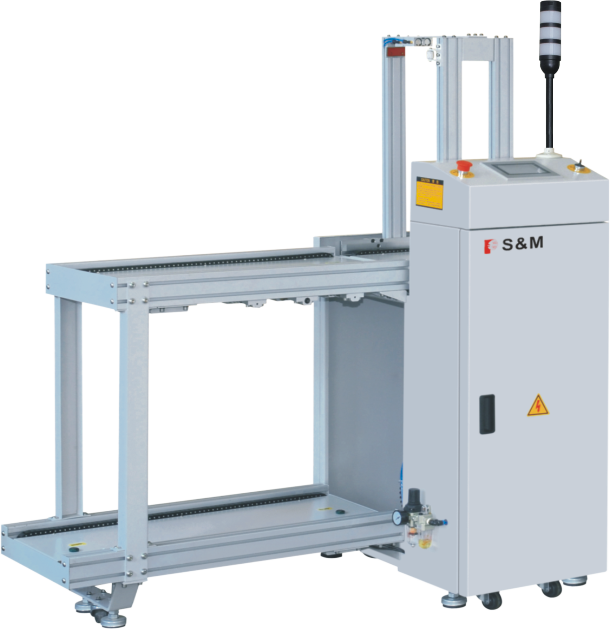

Side Entry Loader
Magazine-to-conveyor transfer from the side. Compact design for space-constrained lines. SMEMA compliant.

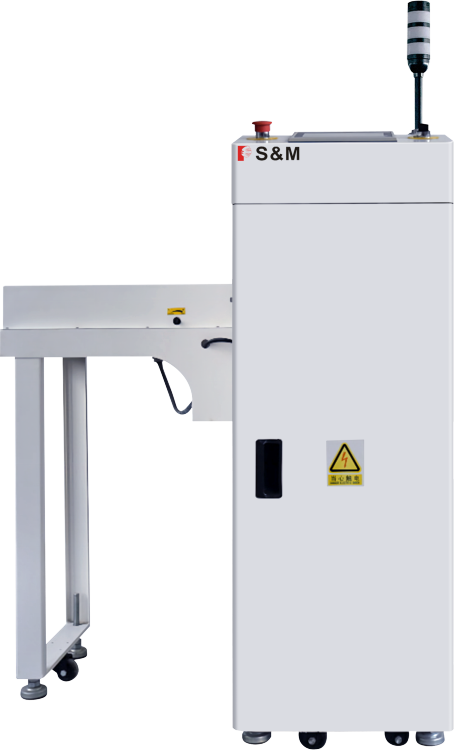

Inline Loader
In-line conveyor-to-conveyor transfer. Optimized for continuous flow production lines. SMEMA compliant.
Vacuum Loader
Vacuum adsorption mechanism for warp-sensitive boards. Gentle handling with programmable vacuum strength.
Auto-Drop Loader DL-460
Auto-drop mechanism for magazines at different heights. Adjustable elevation for flexible magazine changeover.
Suction PCB Loader
Vacuum suction cup loader for thin and flexible boards. Soft-touch pickup to prevent component damage.

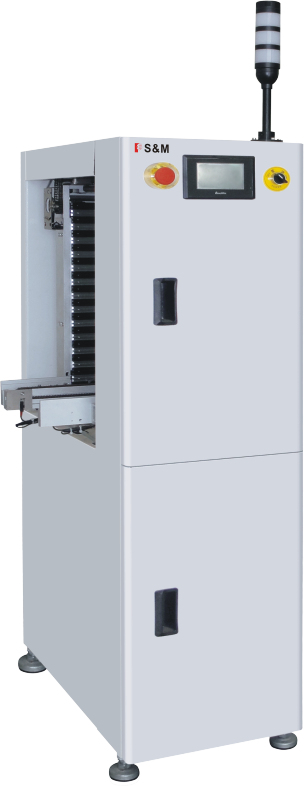

Mini PCB Loader
Compact footprint for small-scale production or lab environments. Fits tight spaces without compromising functionality.

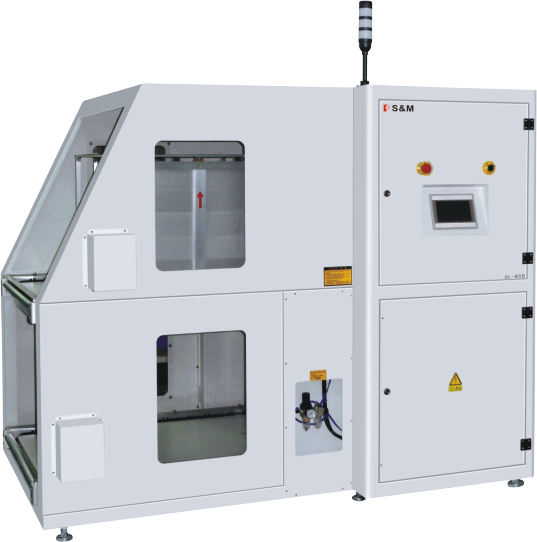

Heavy Duty Loader
Reinforced construction for large, heavy PCB panels up to 5kg. Ideal for automotive and power electronics applications.
SMEMA Compliant Interface
All Sunandmountain PCB Loaders support standard SMEMA 1.0/2.0 signal communication (DC24V input/output) for plug-and-play integration with any SMEMA-compliant SMT equipment. Ready signal, busy signal, and alarm output as standard on all models.
Find Your PCB Loader
Tell us your board size, magazine type, and throughput target. Our engineers will match the right configuration.
Frequently Asked Questions: PCB Loaders
What types of PCB loaders does S&M offer?
S&M PCB loaders cover five configurations: Side-Entry (for standard single-sided loading), Inline (for straight SMT line integration), Vacuum (with vacuum chuck for vacuum-compatible handling), Auto-Drop (automatically separates panels from magazines), Suction (uses suction cups for panel handling without mechanical contact), and Heavy-Duty (for thick or heavy boards up to 5kg). All models support magazine capacities of 50-100 panels and board sizes from 50x50mm to 510x460mm.
What is the difference between a PCB loader and unloader?
A PCB loader loads bare or populated PCBs from an input magazine onto the SMT line conveyor. A PCB unloader receives finished panels from the line output and stacks them into an output magazine. Loaders typically have panel detection sensors for lead-free or sensitive boards, while unloaders often include quality checkpoints (OK/NG sorting) before panel stacking. Both use SMEMA-compliant signal interfaces for line synchronization.
What magazine sizes are supported?
Standard magazine capacity is 50 panels for 3.2mm thick boards, scaling down to 25 panels for 6.0mm boards. All S&M loaders support standard JEDEC tray dimensions and accept custom magazine slot pitch on request. Magazine sensor detection confirms panel presence in each slot to prevent double-loading or empty magazine run.
Can PCB loaders handle heavy or oversized panels?
Yes. S&M Heavy-Duty loaders support panels up to 5kg per panel and board dimensions up to 610x560mm. For oversized panels, the Inline Heavy-Duty model uses reinforced conveyor rails and a strengthened magazine lifting mechanism with stepper motor drive rather than standard pneumatic lift. Panel thickness support extends to 10mm for special applications like metal-core PCBs.
What integration options are available?
All S&M PCB loaders and unloaders support SMEMA 1.0/2.0 signal interface (DC24V) for direct SMT line integration. Optional features include: barcode scanner integration for lot traceability, touch-screen PLC control for recipe memory (up to 50 programs), alarm beacon for production monitoring, and RS-485/TCP-IP MES connectivity for factory automation.
