Quanta Mexico Reflow and Conveyor Project
1 × VS-1204 12-zone air red-glue oven and 6 × PTB6-460 0.6 m single-track belt conveyors.

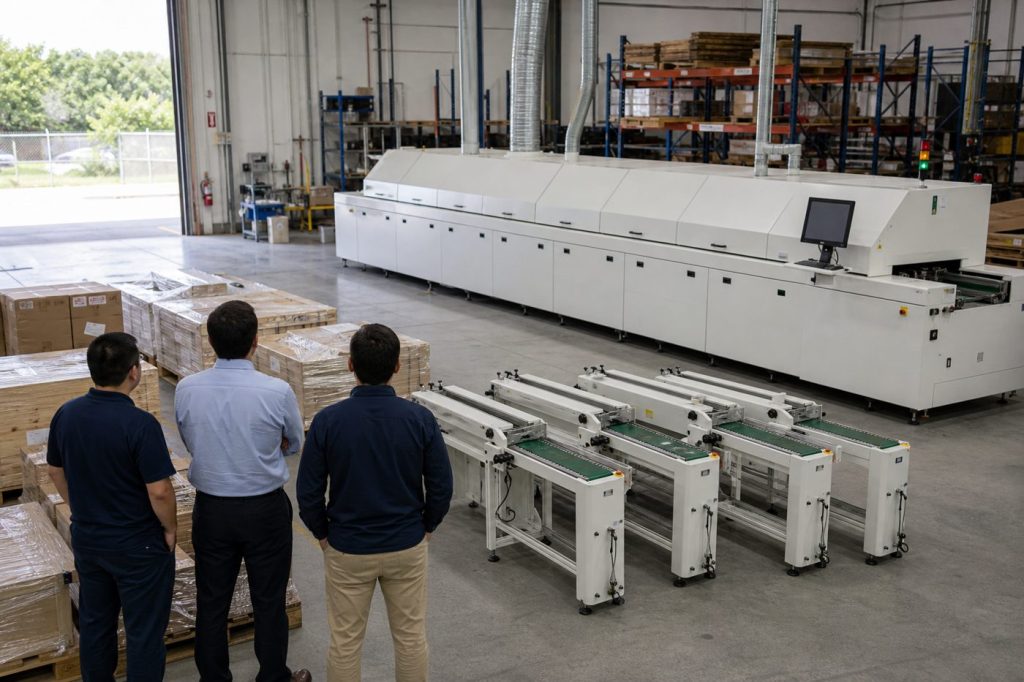

Configuration illustration. Actual equipment layout varies by project; project facts below come from verified internal records.
Project situation
The project pairs a 12-zone thermal process machine with compact transfer conveyors for shipment to Quanta Mexico. The order required left-to-right flow, 900 ± 20 mm oven height, bilingual interface and export vacuum packing.
Documented equipment configuration
The VS-1204 was configured as a 12-zone single-track air oven with upper cooling. Six PTB6-460 conveyors use manual width adjustment for boards up to the documented 460 mm range.
| Project status | Export order |
|---|---|
| Equipment scope | 1 × VS-1204 12-zone air red-glue oven and 6 × PTB6-460 0.6 m single-track belt conveyors. |
| Destination | Mexico · Electronics manufacturing |
| Evidence basis | Customer order review, production plan, shipment/change record or repeat-order document. |
What the records verify
June 2026 order reviews identify the Mexico destination, outgoing models, quantities, export packing and delivery requirements. The page reports the verified order scope and does not claim production results not present in the records.
This case is published to show real project scope and configuration logic. Final equipment selection for another factory must still be checked against PCB size, process, target UPH, layout and utilities.
