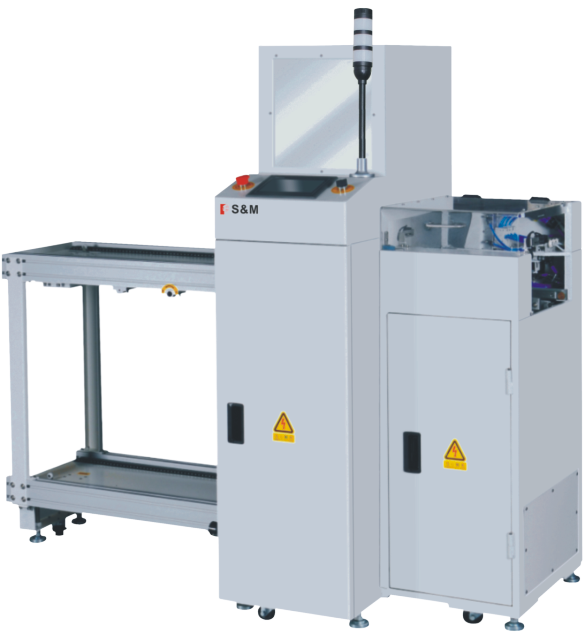

Suction cup pick-and-place loader for boards with sensitive surfaces or irregular shapes. Precise placement with localized suction points.
| Loading Method | Suction cup pick-and-place |
| PCB Size | 50×50 – 500×550 mm |
| PCB Thickness | 0.6–4.0 mm |
| Interface | SMEMA compatible |
| Conveyor Height | 900 ± 20 mm |
Technical Specifications
| Loading Method | Suction cup pick-and-place |
| PCB Size (Min) | 50 × 50 mm |
| PCB Size (Max) | 500 × 550 mm |
| PCB Thickness | 0.6–4.0 mm |
| Conveyor Height | 900 ± 20 mm (SMEMA standard) |
| Interface | SMEMA compatible |
| Power Supply | 220V / 50Hz |
Optional Configuration
| Rail Adjustment | Manual width adjustment or motorized width adjustment |
| Signal / Control | Tower light, buzzer alarm, and custom handshake integration on request |
| Machine Direction | Left-to-right or right-to-left line direction to match plant layout |
| Suction Handling | Suction cup layout and pick-point configuration based on PCB shape |
Who This Loader Fits Best
Surface-Sensitive Boards
Boards with components on the bottom side or sensitive coatings that cannot be edge-gripped or fully vacuum-covered.
Irregular Board Shapes
Non-rectangular PCBs or boards with cutouts that require precise pick points rather than full-area handling.
Compared with Vacuum Loader
Suction cups pick at specific points; vacuum loader covers the full board area. Suction is more adaptable to board shapes with components or cutouts.
Compared with Auto-Drop
Suction provides more precise placement; auto-drop is faster for standard rectangular boards. Choose suction for precision-critical loading.
Related Products
Auto-Drop PCB Loader DL-460
Automatic magazine loading for standard rectangular boards.
Precise Loading for Complex Board Shapes
Tell us your board dimensions and shape requirements — our engineers will configure the right suction cup layout for your application.
