Curing Oven · Model KL-650

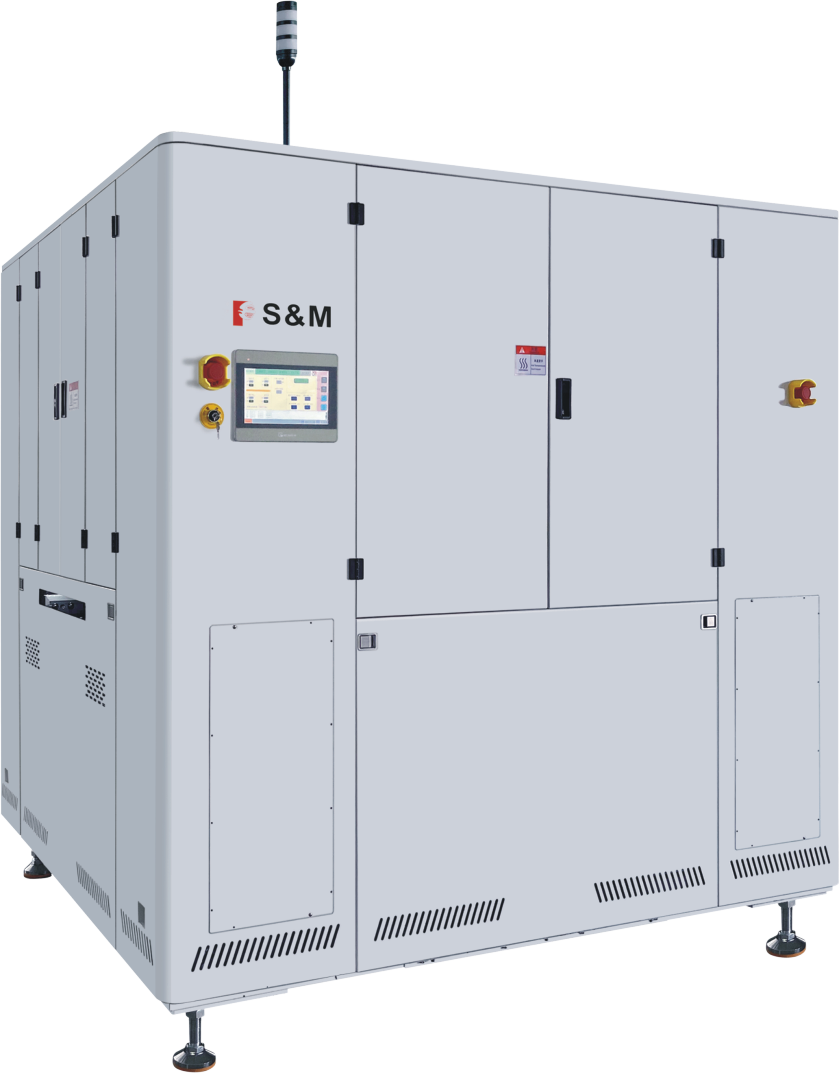

KL-650
Tray-type vertical curing oven for batch processing of SMT adhesive curing and conformal coating.
| Model | KL-650 |
Technical Specifications
| Production Application Range | Consumer Electronics Dispensing, SMT Curing |
| Overall Dimensions | 2250(L)*2050(W)*2150(H)mm |
| Cleanliness Class | Class 100,000 (ISO Class 7) |
| Temperature Setting Range | Ambient ~200degCadjustable |
| TemperatureControl Accuracy | +/-1degC |
| Number of Zones | 4pcs |
| Heating Method | Large Hot Air Circulation,Two-sided Blow,Side Air Return |
| Control Method | PID Closed-loop + SSR Drive |
| Minimum Cycle Time | Set per Product Requirement |
| PCBMaximum Size | 650(L)*460(W) |
| Rail Width AdjustmentRange | 80-460mm |
| Rail Width Adjustment | Auto Width AdjustmentNarrow |
| Product Flow Direction | Left→Right(Optional:Right→Left) |
| Layer Spacing | 20mm |
| Number of Layers | 30Layer*2 |
| Conveyor Height | 950+/-30mm |
| InstalledPower | 65KW |
Who This Machine Fits Best
Adhesive Curing
Precision thermal + UV for consistent adhesive and coating curing.
Clean Environment
Class 100,000 cleanliness for sensitive component processing.
Inline Integration
Conveyor design enables direct integration into existing production lines.
