Link Conveyor

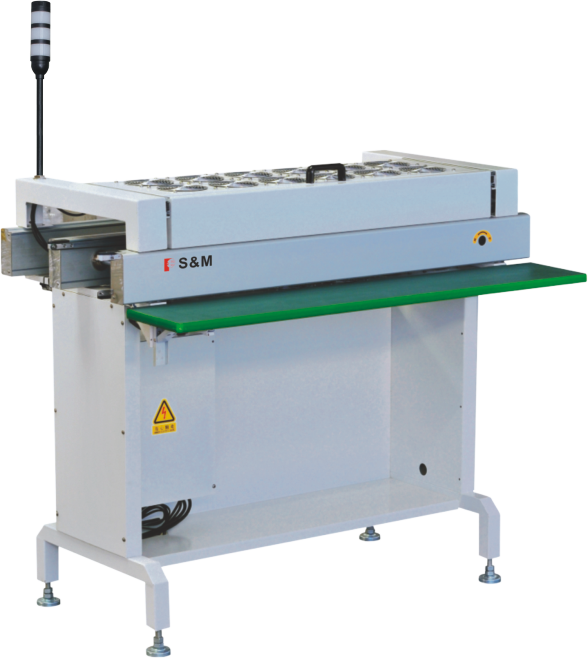

Incline Link Conveyor DS-400P
Two-stage post-wave incline conveyor for DIP production lines. Functions as inlet buffer zone and pre-treatment area with height-adjustable inlet and outlet for smooth board transfer.
Height Adjustable
Two-Stage Design
DIP Line Ready
Technical Specifications
| Power Supply | 220V AC, Single Phase, Max 120 VA |
|---|---|
| Conveyor Speed | 0.5–2.5 m/min or as specified |
| PCB Weight | Max 10 kg |
| PCB Thickness | 0.6–3.0 mm |
| Conveyor Type | PVC conveyor belt |
| Motor | 60W medium-large motor with 1:60 gear ratio, adjustable speed |
| Transfer Direction | Right→Left / Left→Right |
| Belt Width | 500 mm (custom sizes available) |
| Rail Length | 1,500 mm (custom sizes available) |
| Inlet Height | 1,200 ± 20 mm |
| Outlet Height | 750 ± 20 mm (height adjustable ±100–200 mm) |
| Weight | 40 kg |
Optional Configuration
| Cooling Fan | Included (optional upgrade) |
|---|---|
| Custom Dimensions | Belt width and rail length customized per line layout (optional) |
| SMEMA Interface | Available on request |
Need a tailored configuration?
Share your PCB size, line layout, and throughput requirement. We respond with a detailed proposal within 1 business day.
