Apply flux consistently on standard-width boards
Use it when flux application needs automation before wave soldering. Built for SMT factories that care about line rhythm, fewer handling interruptions and equipment that fits the real layout.
The real problem is not one machine. It is line rhythm.
A small PCB handling station can still slow the whole SMT line if board transfer, direction, timing or signal does not match the nearby equipment.
Problems this page should prevent
- Flux spraying should be controlled and consistent before wave soldering, not left to unstable manual operation.
- Wrong configuration causes waiting time, manual intervention and supplier blaming.
- Board size, direction, station height and signal must match the actual line.
- A low-cost generic machine can become expensive if it stops production rhythm.
Why this model is useful
- Use it when flux application needs automation before wave soldering.
- Board size verified on page based on current product specification.
- SMEMA / control details verified on page for line connection or control confirmation.
- Configuration is checked before quotation to avoid forcing the wrong model.
What to send before quotation
PCB size, board thickness, line direction, conveyor height, station position, target capacity and one photo or sketch if available.
Why choose S&M instead of a generic equipment supplier?
One team checks the line
S&M supplies loaders, unloaders, buffers, conveyors, sprayers and soldering equipment. The station is checked as part of the line, not as an isolated machine.
Configuration before quotation
We confirm whether the standard model fits. If the layout needs another type, we tell you before quoting the wrong equipment.
Practical cost structure
For standard SMT handling stations, factories need stable transfer and fast support without paying unnecessary international-brand pricing.
Verified technical specifications
These parameters are kept from the existing S&M product page. Final fit still depends on your PCB and line layout.
| Power Supply | 220V AC, Single Phase, Max 700 VA |
| Spray Motor | 1Φ AC 220V 90W |
| Flux Tank Motor | 1Φ AC 220V 30W |
| PCB Max Width | 450 mm |
| Conveyor Direction | Left→Right or Right→Left (selectable) |
| Conveyor Speed | 0–1,800 mm/min |
| Conveyor Type | 35B chain conveyor, 5 mm pin length |
| Machine Dimensions | 1,500 (L) × 1,300 (W) × 1,600 (H) mm |
| Net Weight | 400 kg |
| Flux Auto-Top-Up | Standard |
| Air Source | > 4 kg/cm² |
| Spray Width | Programmable zone selection (area-selective spray) |
| Width Adjustment | Manual standard / Electric drive (optional) |
| Flux Economy Mode | FLUX energy-saving mode (optional) |
| SMEMA Interface | Standard |
| MES Integration | One-key width adjustment + data exchange (optional) |
When to choose it — and when not to
Choose this model when
Choose FT-450 when board width and process capacity match the standard sprayer range.
Do not choose it blindly when
The problem is actually board size, board weight, direction, height, cooling time, sorting logic or another station. Send the line details first so we can check.
Before you buy, check these points
- PCB size, thickness and board weight.
- Left-to-right or right-to-left direction.
- Conveyor height and station position.
- SMEMA or control signal requirement.
- Target capacity and where the current line waits.
- Whether matching loader, unloader, buffer or conveyor is also needed.
Related SMT equipment
Use these links to match this station with the rest of the SMT line.

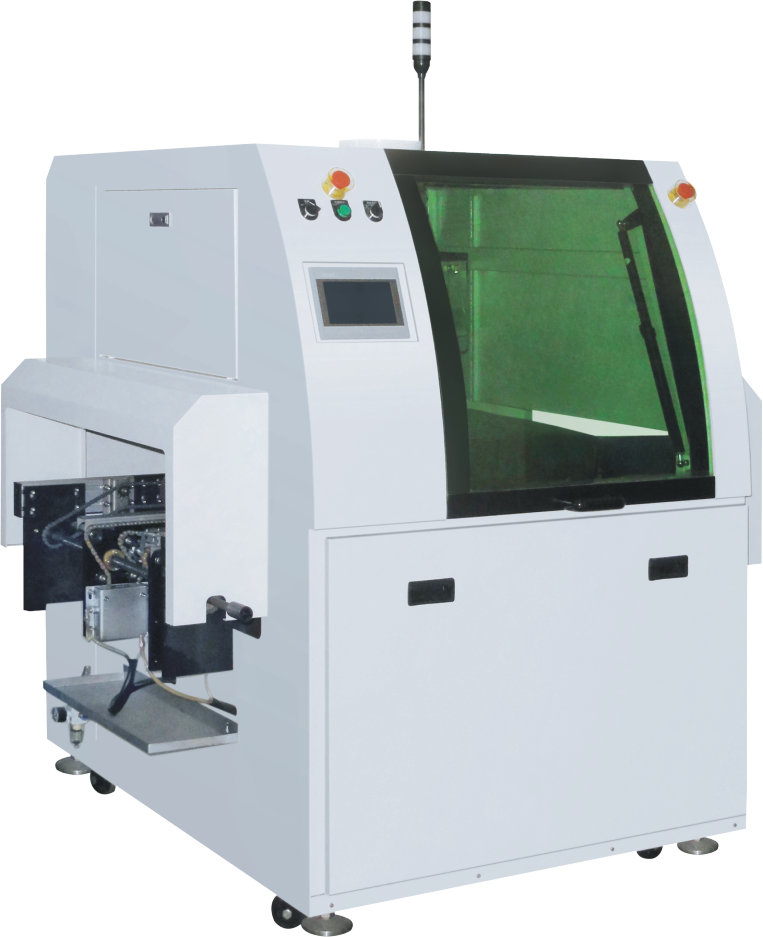

Get the right PCB Flux Sprayer FT-450 configuration before you buy
Send your PCB size, line direction, conveyor height and station position. If you have a photo or sketch, mention it in the form and we will ask for it by email after submission.
Get a configuration recommendation
We usually reply within 1 business day. Your information is used only for quotation and technical communication.
FAQ
Can S&M match this with my current line?
Yes. Send conveyor height, line direction and interface requirements so the station can be checked against your existing equipment.
Can you customize size or direction?
Customization depends on board size, station type and layout. We confirm the configuration before quotation.
What makes the quote faster?
Send PCB size, thickness, target capacity, line direction and a station photo or sketch if available.
