Keep front-entry board feeding simple, stable and automatic

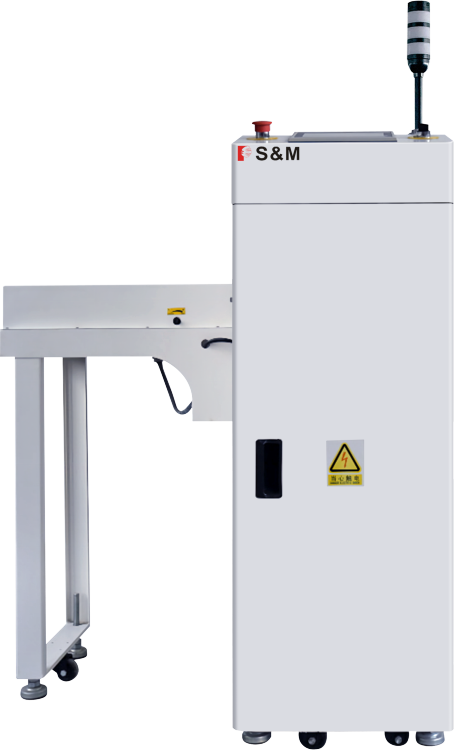

Inline PCB loader is the standard choice for direct board feeding into automated SMT lines. It is built for factories that want straightforward magazine-to-line transfer, stable rhythm, and clean integration with printer, conveyor and downstream equipment.
The real problem is not loading boards. It is line rhythm.
A PCB loader should not become the small machine that slows down the whole SMT line. The buyer needs stable transfer, easy magazine handling, clear SMEMA communication and a configuration that matches the actual factory layout.
Problems this page should prevent
- Manual feeding makes the first station depend too much on operator timing.
- The line pauses when boards are not handed off consistently.
- Some layouts do not need side access or special suction handling.
- A simple automatic loader is enough, but it must match direction and SMEMA signal.
Why this model is useful
- Inline front-entry loading for continuous board feeding.
- 50 × 50 – 500 × 550 mm PCB range supports standard SMT boards.
- 900 ± 20 mm conveyor height matches common SMEMA line setup.
- Left-to-right or right-to-left direction can be matched to plant layout.
What to send before quotation
PCB size, board thickness, magazine size, board weight if relevant, line direction, conveyor height and one photo or sketch of the station position.
Why choose S&M instead of a generic PCB loader supplier?
One team checks the handling line
S&M supplies loaders, unloaders, buffers and conveyors. That reduces interface mismatch and supplier blaming when stations do not run smoothly together.
Configuration before quotation
We check whether a standard model fits first. If your board or layout needs another loader type, we tell you before quoting the wrong machine.
International-line expectations, local-price structure
For standard PCB handling stations, many factories do not need international-brand pricing. They need stable transfer, clean integration and fast response.
Verified technical specifications
The table keeps verified parameters from the current S&M product page. Final configuration still depends on PCB size, layout and production rhythm.
| Loading Method | Inline (front entry) |
| PCB Size | 50×50 – 500×550 mm |
| PCB Thickness | 0.6–4.0 mm |
| Interface | SMEMA compatible |
| Conveyor Height | 900 ± 20 mm |
| PCB Size (Min) | 50 × 50 mm |
| PCB Size (Max) | 500 × 550 mm |
| Power Supply | 220V / 50Hz |
| Rail Adjustment | Manual width adjustment or motorized width adjustment |
| Signal / Control | Tower light, buzzer alarm, and custom handshake integration on request |
| Magazine Handling | Magazine count detection and magazine-presence sensing |
| Machine Direction | Left-to-right or right-to-left line direction to match plant layout |
When to choose it — and when not to
Choose this model when
Choose inline when the line needs a standard automatic loader and has clear front-entry access for magazine loading.
Do not choose it blindly when
Do not choose inline if magazine replacement from the front blocks operators or equipment. Side-entry may be better in crowded lines.
Before you buy, check these points
- PCB size range and future product size changes.
- PCB thickness, board weight and surface sensitivity.
- Magazine size, magazine capacity and access direction.
- Left-to-right or right-to-left line direction.
- Conveyor height, SMEMA signal and upstream/downstream station position.
- Whether you also need matching unloader, buffer or conveyor.
Related SMT equipment
Use these links to match the loader with downstream board handling and soldering equipment.
Match an inline loader to your SMT line direction
Send your PCB size, magazine size, board thickness and line direction. If you have a station photo or sketch, mention it in the form and we will ask for it by email after submission.
Get a loader recommendation
We usually reply within 1 business day. Your information is used only for quotation and technical communication.
FAQ
Can S&M match this with my current line?
Yes. Send conveyor height, line direction and SMEMA requirements. The loader can be matched with existing SMT equipment when dimensions and signals are clear.
Can you customize size or direction?
Yes, depending on board size, magazine format and line layout. We confirm the configuration before quotation instead of forcing one standard model.
What makes the quote faster?
Send PCB size, thickness, magazine size, target UPH, line direction and a photo of the station. This avoids back-and-forth and wrong configuration.
