Product Overview

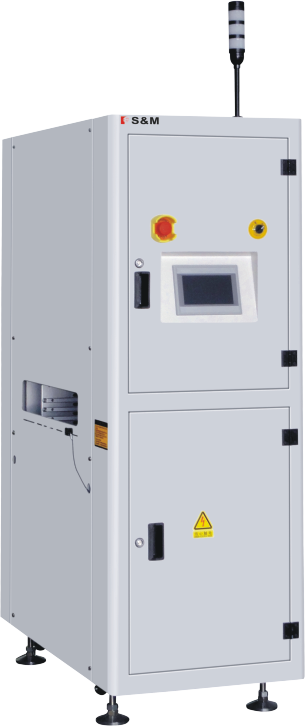

The PCB Standard Buffer ZCL-3 is the fundamental line-balancing solution for SMT production lines. It sits between two adjacent stations and holds a small number of boards in a first-in, first-out queue. When the downstream station is momentarily busy — processing a board, performing a calibration cycle, or handling a brief pause — the ZCL-3 absorbs the incoming boards from upstream and releases them when the downstream station is ready.

Without a buffer between stations, any brief pause at one machine forces the entire upstream portion of the line to stop. The ZCL-3 decouples adjacent stations, allowing each to run at its own pace within a reasonable range. This is the most common buffer type in SMT lines and is typically placed between the reflow oven and AOI, between AOI and the unloader, or between any two stations with slightly different cycle times.

Key Highlights

• Line decoupling — absorbs speed differences between adjacent stations to prevent cascading stoppages
• FIFO board order — boards exit in the same order they entered, maintaining production traceability
• SMEMA compatible — integrates with any standard SMT line equipment
• Compact design — minimal footprint between line stations
• Adjustable rail width — accommodates a range of PCB sizes
• Simple operation — no operator intervention required during normal production

Best For

• Between any two adjacent SMT line stations with slightly different cycle times
• Between reflow oven and AOI to absorb oven output during AOI processing
• Between AOI and unloader to prevent AOI pauses from stopping the oven
• Any line where momentary station pauses cause upstream stoppages

How It Compares

• vs Storage Buffer ZCL-3BLii: Standard buffer holds a small number of boards for momentary speed differences. ZCL-3BLii holds a much larger quantity for extended storage during maintenance or changeover.
• vs Cooling Storage Buffer ZCL-3BL: Standard buffer provides no cooling. ZCL-3BL adds active airflow for temperature reduction — choose ZCL-3BL after a reflow oven.
• vs OK/NG Buffer ZCLA-3: Standard buffer passes all boards through in one lane. ZCLA-3 sorts boards into OK and NG lanes based on inspection signals.
