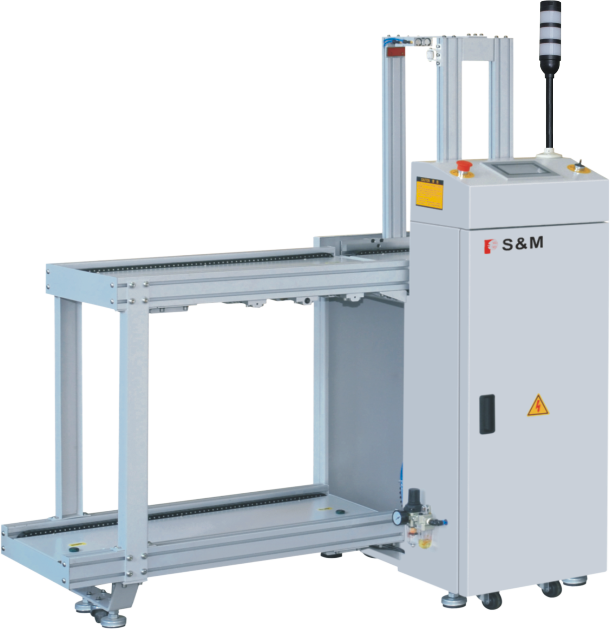

Side Entry PCB Loader
Magazine-type loader with side-access feeding. Allows magazine replacement without stopping the production line — ideal for high-mix SMT operations.
| Loading Method | Side entry magazine |
| PCB Size | 50×50 – 500×550 mm |
| PCB Thickness | 0.6–4.0 mm |
| Interface | SMEMA compatible |
| Conveyor Height | 900 ± 20 mm |
Full Technical Specifications
| Loading Method | Side entry (magazine) |
| PCB Size (Min) | 50 × 50 mm |
| PCB Size (Max) | 500 × 550 mm |
| PCB Thickness | 0.6–4.0 mm |
| Magazine Capacity | 30–50 boards per magazine |
| Conveyor Height | 900 ± 20 mm (SMEMA standard) |
| Interface | SMEMA compatible |
| Power Supply | 220V / 50Hz |
Who Should Choose This Model?
High-Mix Production
Side access allows quick magazine swaps between product changeovers without interrupting line flow.
Standard SMT Lines
The most common loader type for typical SMT production. Compatible with all standard solder paste printers and SPI machines.
vs Inline Loader
Side entry allows loading from the side; inline requires front access. Choose side entry when your line layout has better side clearance.
vs Auto-Drop
Side entry requires manual magazine loading; auto-drop automates this. Choose side entry for lower volume or more flexible operations.
